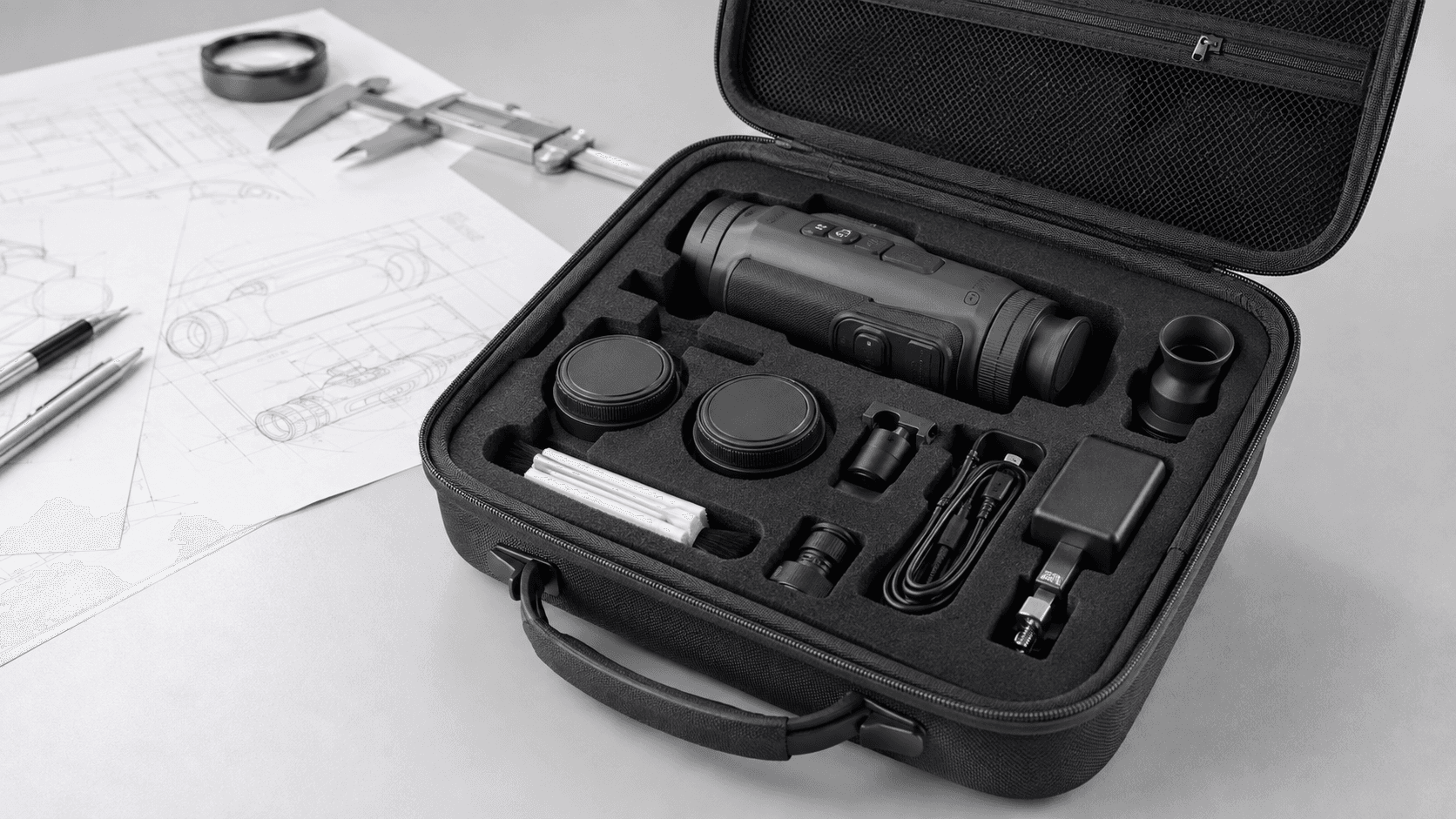

Optical device carrying cases should be planned around the complete working kit, not just the largest instrument. A lens may fit neatly while its adapter, charger, cable, mount, or protective cover has nowhere sensible to go. The case can look finished and still slow the user down every time the kit is opened.
A useful brief starts with the actual devices and accessories, then follows the way they are stored, carried, set up, and repacked. Those details guide the case structure, opening, internal support, pockets, and carrying arrangement. They also give the buyer a clear way to review the first sample without treating an ordinary fit check as proof of drop, water, or other performance.
What should an optical-device case hold?
Begin with a complete item list. Include the main optical device, but also list lenses, eyepieces, adapters, batteries, chargers, cables, mounts, covers, manuals, cleaning accessories, and any removable parts that travel with it. Record quantities and note which items may change between product versions or sales bundles.
Next, put the items in the order in which the user needs them. An accessory used during every setup should not be buried under the main device. A rarely used charger may suit a separate pocket, while a small adapter may need a visible, retained position so it is easy to notice when missing.
The resulting layout should reflect a real workflow rather than an attractive empty arrangement.
Map the device, optical surfaces, and protruding parts
Record the length, width, height, and weight of each major item. Photographs or drawings should show lenses, knobs, connectors, screens, hinges, mounts, and other protruding areas. Mark surfaces that should not receive concentrated pressure and parts that need room for fingers during removal.
The removal path is as important as the cavity shape. A close fit may control movement, but it can also make an item awkward to lift. Finger recesses, pull tabs, a different orientation, or support at selected areas may improve access. The suitable approach depends on the actual geometry and the approved project requirements.
If development uses a model, drawing, or substitute instead of the production device, record that fact. The first sample should not be described as checked against the real product when the reference differs in size, weight, controls, or surface details.
Describe storage, transport, setup, and access order
Write down where the case is stored and how it moves. A kit kept on a laboratory shelf has a different routine from one carried between service calls, demonstrations, outdoor observation points, or temporary workspaces. The description should cover the normal opening surface, carrying method, handling frequency, and the order in which items leave and return to the case.
Specific descriptions are more useful than broad labels. For example, "opened on a narrow bench with the main device removed first" gives the designer something to work with. "For field use" does not explain the available space, carrying orientation, expected contact with moisture or dust, or whether any of those conditions must become a tested requirement.
Which case structure fits the optical kit?
Once the kit and workflow are clear, the buyer can compare case structures. The choice should follow the required fit, access, organization, appearance, and validation plan. A familiar category name alone cannot answer those questions.
Thermoformed EVA, sewn organization, and rigid plastic are different paths
A thermoformed EVA case uses EVA as a shaped structural core and is generally semi-rigid. Its visible outer surface may be a laminated fabric or another material selected for the project. The inside may use a lining, molded support, foam insert, pocket, elastic retainer, or divider.
This construction is different from an ABS, PP, or PC injection-molded plastic shell. The two paths differ in materials, flexibility, surface construction, opening details, and production considerations. Pengtour's EVA and hard-plastic case comparison explains that structural boundary in more detail.
A sewn case follows another route. Its shape comes from cut-and-sewn panels, seams, lining, padding, reinforcement, and any inserted support. It may work well when the kit needs flexible pockets or organization, but it does not have the same formed shell as a thermoformed EVA case.
None of these structures is automatically best for every optical device. The design brief should name the intended construction and explain which project requirements it needs to satisfy.
Foam, molded support, pockets, and dividers
Internal support should follow the item map. A shaped insert may position the main device and selected accessories. Pockets can hold flat or lightweight items. Dividers can separate equipment when some layout flexibility is needed. Elastic retainers may keep cables or small components visible, provided their position and tension work on the loaded sample.
More compartments do not necessarily produce a better case. A full lid pocket may press against the device when the case closes. A deep cavity may hold an instrument securely but make it difficult to remove. Loose accessories can also contact sensitive surfaces even when the main item fits well.
The EVA case foam insert guide covers insert choices in more depth. Exact foam material, density, hardness, thickness, processing method, and fit requirements still need to be confirmed for the individual project.
Opening, handle, shoulder strap, and attachment interfaces
The opening should suit the setup sequence. Check whether the lid stays clear of the work area, whether pockets remain accessible, and whether the main device can be removed without twisting it around the zipper or nearby accessories. A full clamshell opening may suit one kit, while another may need a more controlled opening angle or a different orientation.
Handles and straps should be placed with the complete load in mind. Review balance, grip position, carrying orientation, strap hardware, and possible contact between attachment points and the stored equipment. These checks can show whether a sample is awkward to carry. They do not establish a load rating or long-term durability result.
Build an optical-device case input matrix
An input matrix keeps equipment facts, case decisions, sample observations, and formal validation items separate. Replace the examples below with the actual optical kit.
| Device or accessory | Use action | Case decision to review | Buyer input or reference | What to observe on the sample | Unresolved validation item |
|---|---|---|---|---|---|
| Main optical device | Removed first and placed on the work surface | Orientation, support areas, finger access, clearance around controls | Dimensions, weight, photos, drawing, physical item if needed | Fit, contact points, visibility, removal effort | Any project-specific movement or protection requirement |
| Lens, eyepiece, or optical attachment | Changed during setup or use | Separate position, surface contact, cap clearance, identification | Quantity, dimensions, installed covers, handling sequence | Access, unwanted contact, mix-up risk | Acceptance rule for retention or surface protection, if required |
| Cables, charger, and adapters | Stored and repacked after use | Pocket, retainer, divider, or shaped position | Full accessory list, cable condition, plug variants | Tangling, pressure on other items, closure clearance | Cable or connector requirement supplied by the buyer |
| Mount, bracket, or removable hardware | Added during setup | Support, separation, edge clearance, removal path | Dimensions, weight, sharp or protruding areas | Movement, interference, access order | Project-specific retention requirement |
| Handle or shoulder strap | Carries the complete kit | Carrying orientation, attachment locations, hardware, balance | Total loaded weight and normal carrying method | Grip, balance, strap position, hardware interference | Agreed load or durability evaluation |
The matrix is a planning tool, not a fixed specification. Before sampling, the project team should also confirm packaging, branding, labeling, target-market documentation, and any requirement that cannot be decided through a visual or functional sample review.
For a broader set of project inputs, see Pengtour's custom EVA case design requirements guide.
What should buyers review on the first case sample?
Use the real device and normal accessory set whenever possible. If the review uses a prototype, dimensional model, or substitute, note where it differs from the production equipment. Then work through the sample in the same order a user would handle the kit.
Check fit, visibility, and removal
Load the main device and look for unwanted movement, pressure on controls, contact with protruding parts, and enough space for removal. Close the case carefully and check whether lid pockets or stored accessories press into the main compartment.
Repeat the process for every accessory. Each item should have an identifiable place and a practical removal path. Check caps, lenses, adapters, cables, and small parts in the condition in which they will normally be stored. A neat cavity is not useful if the user must remove several unrelated items to reach it.
Review the loaded carry and closure workflow
Open the case on the work surfaces described in the brief. Follow the planned setup and repacking order. Watch for a lid that falls into the workspace, a cable that catches the zipper, a pocket that releases its contents, or a divider that blocks access to the main device.
Carry the loaded sample using the intended handle or strap. Observe balance, orientation, grip, and hardware position. Close and reopen the sample with the complete kit inside. These are practical observations of one sample under defined conditions, not proof of shock resistance, waterproofing, load capacity, or service life.
Record workmanship, approved points, and unresolved validation
Review dimensions, appearance, stitching, lining, zipper operation, handles, straps, internal structures, logo, fit, function, and packaging against the approved project requirements. Photograph any issue and identify the affected item, location, expected change, and reference dimension when available.
Keep formal validation on a separate list. A drop, load, abrasion, water, temperature, closure-cycle, transport, optical, or regulatory requirement needs an agreed method, conditions, responsibility, and acceptance criteria. Passing an ordinary sample review does not close those items.
How Pengtour can support an optical-device case project
Pengtour develops custom EVA protective cases for eligible overseas B2B projects. For an optical-device kit, project review may cover the product size and shape, opening, internal layout, materials, zippers, handles, straps, pockets, dividers, hardware, packaging, and sample requirements.
The exact structure depends on the devices, accessories, workflow, and approved project requirements. A physical item, drawing, 3D file, or another accurate reference may be needed when fit is sensitive. Materials, validation, commercial terms, and the sample process are confirmed for the individual project.
Buyers considering a thermoformed EVA structure can review Pengtour's custom EVA protective cases before preparing the equipment brief.
Frequently asked questions
What information should I provide before ordering an optical-device case?
Provide the complete device and accessory list, dimensions, weights, photos or drawings, optical surfaces and protrusions, setup sequence, carrying method, preferred opening, branding, packaging, quantity, and any formal validation requirements. A physical product or accurate model may be needed when fit cannot be evaluated reliably from dimensions alone.
Should an optical-device case use foam, pockets, or molded support?
That depends on the equipment geometry, access order, movement, retention, surface contact, case structure, and sample result. Foam, pockets, dividers, straps, and molded supports solve different layout problems. The suitable combination should be reviewed with the complete loaded kit rather than selected as a universal default.
Is an EVA optical-device case the same as an ABS hard case?
No. A thermoformed EVA case uses EVA as a shaped structural core and may have a fabric or another project-specific outer surface. An ABS hard case uses a rigid plastic shell. The materials, flexibility, construction, opening details, and production route are different. Pengtour's confirmed scope for this article is custom EVA protective cases, not ABS, PP, or PC injection-molded cases.
Can a sample review prove drop, waterproof, or optical protection performance?
No. A sample review can document fit, access, organization, loaded carrying observations, closure, workmanship, and packaging. Drop, water, load, optical, regulatory, or durability claims require a defined method, conditions, acceptance criteria, and reliable project-specific evidence.
