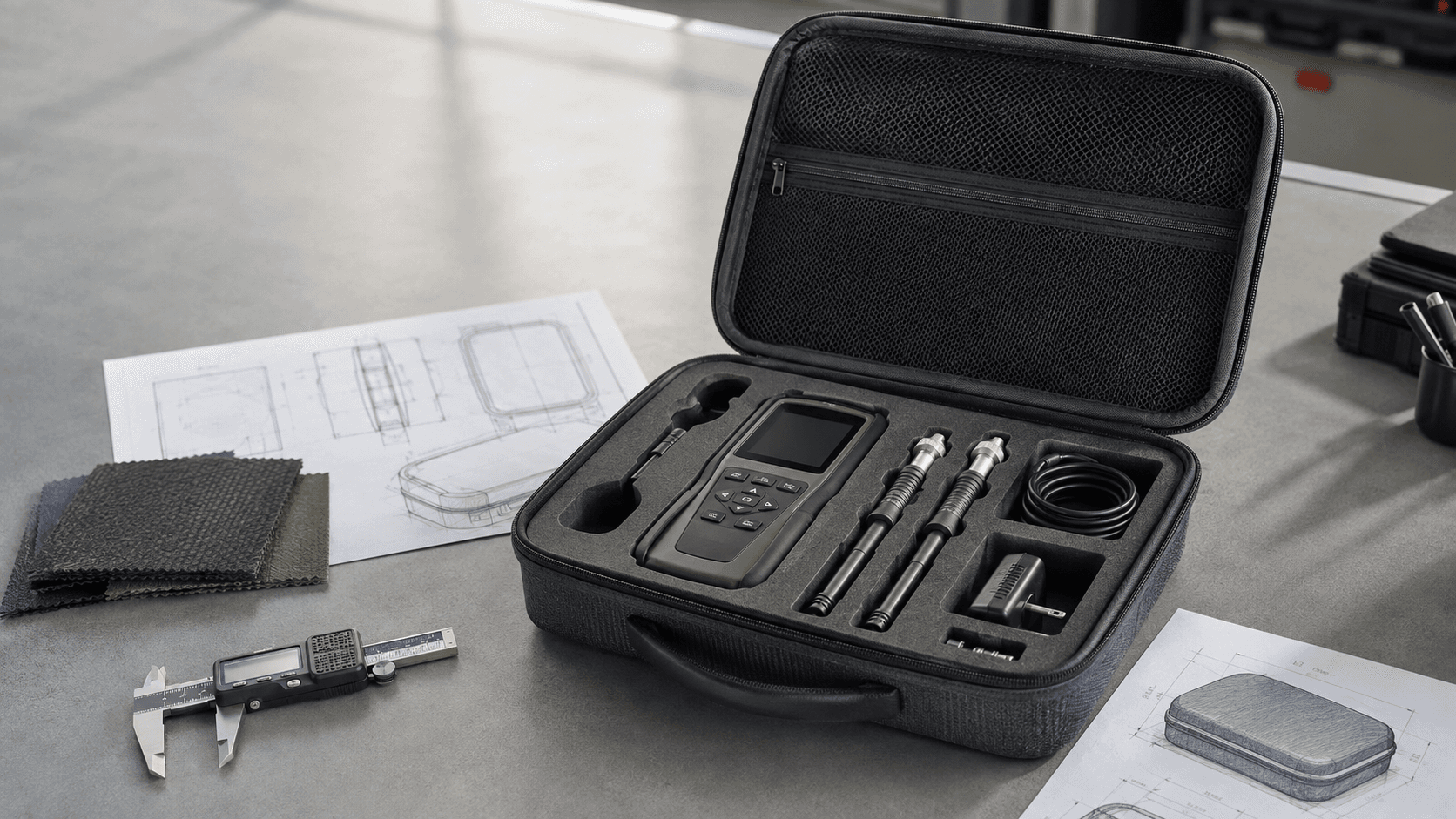

Carrying cases for measuring devices work best when they are designed around the complete kit and the way it will be used. The instrument is only one part of that picture. Probes, cables, adapters, chargers, reference pieces, manuals, and removable parts all affect the case size, interior, opening, and carrying arrangement.
Before choosing a shell or insert, write down what goes into the case, how each item is removed, where the kit travels, and what must be checked on a sample. This turns a general request for a "protective case" into a brief that a case developer can review.
This guide focuses on those project inputs. It does not assign a universal material, clearance, or protection level to every instrument.
What should a measuring-device case protect and carry?
Begin with the equipment that will actually ship with the case. A dimensional drawing of the main instrument helps, but it may not show a connector that remains attached, a probe with a delicate tip, or a cable that is difficult to bend. Those details often change the interior more than a small difference in the outside dimensions.
Separate the kit into three groups:
1. The main instrument or instruments. 2. Accessories needed during normal operation, such as probes, leads, clamps, adapters, chargers, and batteries. 3. Supporting items, such as manuals, calibration records, labels, or small consumables.
Decide which items must remain together and which can use a pocket or removable compartment. If a technician needs one probe first, burying it below the instrument may make an otherwise neat layout awkward in use.
Map the instrument, accessories, and protruding parts
Record the length, width, height, and weight of every major item. Mark controls, screens, connectors, knobs, hinges, and other areas that should not receive concentrated pressure. Note whether cables are stored connected or disconnected, and specify a sensible bend radius if the cable supplier provides one.
Photographs help explain the kit, but a physical product, production sample, drawing, or 3D file may be needed when fit is sensitive. Include tolerances or alternate product versions if they affect the cavity. Do not assume one sample represents every unit unless that assumption has been checked.
The removal path matters too. A close-fitting cavity may hold an item neatly but still frustrate the user if there is no place for fingers. Tabs, finger recesses, or a different orientation can make access easier without loosening the whole layout.
Describe transport, storage, access, and setup
A measurement instrument case used on a laboratory shelf faces a different routine from one carried between service calls. Describe the real sequence:
- Where is the case stored? - Is it carried by hand, shoulder strap, cart, or inside another shipping container? - Will the user open it on a bench, floor, vehicle seat, or narrow work surface? - How often is the kit opened? - Which items are removed first and returned last? - Does the user need to see an accessory inventory at a glance?
These answers guide the opening direction, lid organization, carrying points, and interior arrangement. They do not prove resistance to drops, water, dust, crushing, temperature, or other environmental conditions. If such performance is required, state the applicable test or acceptance requirement separately.
Which case decisions follow from the equipment set?
Once the equipment map and use sequence are clear, the case developer can compare possible structures. The goal is not to select a feature because it is common. Each feature should solve a specific fit, access, organization, or carrying problem.
Fit, support, and removal path
The main instrument may sit in a shaped cavity, between supports, under a retention strap, or in another project-specific arrangement. The right approach depends on its geometry, sensitive areas, weight, and how often it is removed.
Define what "good fit" means for the project. During a sample review, buyers may look for unwanted movement, pressure on controls, contact with protruding parts, and reasonable removal effort. A visual fit check is useful, but it is not a substitute for a defined performance test.
Plan for accessory movement as well. A loose adapter can contact the instrument even when the main cavity fits well. Small parts may need their own pocket, elastic holder, divider, or labeled position.
Foam, dividers, pockets, and retention
Foam inserts can position equipment and separate components, but there is no single foam construction for every carrying case for measurement instruments. Geometry, weight, surface sensitivity, access, processing method, and the intended case structure all affect the choice. The EVA case foam insert guide explains insert decisions in more detail, while the EVA foam core density guide covers a separate material question.
Dividers suit kits that need some layout flexibility. Pockets work well for flat or lightweight items, provided they do not press against the instrument when the case closes. Elastic retention can keep a cable or tool visible, but the attachment and tension still need to be reviewed on the loaded sample.
Avoid filling every empty area. An extra pocket or strap can obstruct the opening, catch a connector, or make the kit harder to repack. Interior organization should reflect the user's sequence rather than the available space alone.
Opening, handles, straps, and attachment interfaces
Opening direction affects both access and stability. Check whether the lid stays clear of the work area, whether a pocket can release its contents, and whether the instrument can be removed without twisting it around the zipper or lid.
Handles and shoulder straps should be considered with the expected loaded kit, not an empty case. Review the carrying orientation, balance, grip area, attachment locations, and any hardware that may contact the user's body or nearby equipment. A sample carry check can reveal imbalance or interference, but load capacity and long-term durability require agreed evaluation methods.
For a fuller list of project inputs, see the custom EVA case design requirements guide.
Build a measuring-device case input matrix
An input matrix keeps equipment facts, case choices, sample observations, and unresolved tests in separate columns. That separation prevents a visual sample check from being mistaken for formal validation.
| Instrument or accessory | Use and transport action | Case decision to review | Buyer input or reference | Sample observation | Open test or acceptance item |
|---|---|---|---|---|---|
| Main meter or tester | Removed first and placed on a work surface | Orientation, cavity, finger access, screen and control clearance | Dimensions, weight, drawing, photos, physical sample if needed | Fit, contact points, removal effort | Project-specific movement or performance requirement |
| Probes and leads | Used during setup and repacked frequently | Pocket, elastic holder, divider, or shaped position | Quantity, dimensions, connector details, storage condition | Access order, tangling, contact with main unit | Cable or connector acceptance requirement |
| Charger and adapters | Stored with the kit but used less often | Separate compartment and retention | Full accessory list and plug variants | Movement, closure clearance, identification | Retention requirement if specified |
| Manual or records | Must remain visible and reasonably flat | Lid pocket or document sleeve | Document size, thickness, update method | Access and interference with closing | Document-control requirement if applicable |
| Handle or shoulder strap | Carries the loaded case between locations | Handle position, strap layout, hardware, balance | Total loaded weight and carrying routine | Grip, balance, attachment interference | Agreed load or durability evaluation |
Treat this matrix as a project conversation tool, not a fixed specification. Replace the examples with the actual kit and add acceptance criteria supplied by the responsible engineering or quality team.
Before sampling, confirm at least the following:
- Current equipment dimensions and weight, including relevant tolerances or variants. - A complete accessory map with quantities and storage condition. - Protrusions, connectors, sensitive surfaces, and cable constraints. - The order in which users open, remove, operate, and repack the kit. - Storage and transport descriptions without assuming an unverified protection rating. - Preferred carrying method, opening direction, pocket use, branding, and packaging inputs. - Any formal test, regulatory, documentation, or acceptance requirement that cannot be decided through an ordinary sample review.
What should buyers review on the first case sample?
Use the real instrument and normal accessory set whenever possible. If a substitute or 3D-printed reference is used, record where it differs from production equipment. Review the sample in the same sequence that a user would handle the kit.
Check fit, visibility, and removal
Start with the main instrument. Look for unintended movement, pressure on controls, contact at protruding parts, and enough access for removal. Close the loaded case carefully and check whether the lid organization or accessory pockets press against the main item.
Then repeat the check for every accessory. Confirm that each item has an identifiable place and can be removed without disturbing fragile or frequently used parts.
Review the loaded kit and field workflow
Open the case on the surfaces described in the brief. Follow the normal setup and repacking order. Check whether the lid stays out of the way, accessories remain visible, cables can be returned without forced bends, and the case can close without rearranging the kit each time.
Carry the loaded sample using the planned handle or strap. Observe balance, grip, orientation, and hardware interference. These are practical observations from the sample. They should not be reported as a tested load rating or durability result.
Record approved points and unresolved validation items
Mark each point as approved, revise, or still subject to a defined test. Photographs with callouts are often clearer than comments such as "too tight" or "needs more protection." Record the item, location, expected change, and reference dimension where available.
Keep formal validation on a separate list. Drop, load, environmental, abrasion, closure-cycle, material, regulatory, or transport requirements need a named method, conditions, responsibility, and acceptance criteria before anyone can treat them as verified.
How Pengtour can support a measuring-device case project
Pengtour develops custom EVA protective cases for eligible overseas B2B projects. For a measuring-device kit, the project review can cover the product size and shape, opening, internal layout, materials, zippers, handles, straps, pockets, dividers, hardware, packaging, and sample requirements.
The final structure depends on the equipment set and the approved project requirements. A physical instrument, drawing, 3D file, or other reference may be needed when the fit is complex. Material specifications, validation plans, commercial terms, and the sample process are confirmed for the individual project rather than assumed from a general case type.
Buyers considering an EVA structure can review Pengtour's custom EVA protective case options before preparing their equipment brief.
Frequently asked questions
What information should I provide before ordering a measuring-device case?
Provide the instrument and accessory list, dimensions, weights, photos or drawings, connector and protrusion details, use sequence, carrying method, preferred opening, branding needs, packaging inputs, quantity, and any formal validation requirements. A physical product or 3D file may be needed when the shape or fit is difficult to evaluate from dimensions alone.
Should a measuring-device case use a foam insert or a molded support?
That depends on the equipment geometry, weight, access, organization, surface sensitivity, case structure, and sample result. Foam, dividers, pockets, straps, and molded supports solve different problems. The suitable arrangement should be reviewed against the complete loaded kit rather than selected as a universal default.
Can a sample review prove drop, load, or environmental protection?
No. A sample review can document fit, access, organization, loaded carrying observations, closure, and visible workmanship. Claims about drop performance, load, water, dust, temperature, or durability require an agreed method, conditions, acceptance criteria, and reliable results.
Is an EVA case automatically waterproof or medical-grade?
No. EVA may be part of a case structure, but the complete case can also include outer materials, lining, seams, zippers, inserts, and other components. Water resistance or medical and regulatory status cannot be inferred from EVA alone. Any such requirement needs project-specific materials, documents, construction details, and verification.
