When product managers and hardware engineers design protective enclosures for high-end electronics—such as virtual reality (VR) headsets, portable medical diagnostics, or high-precision optical instruments—impact and drop protection are the top priorities. A single accidental drop during transit or field operations can cause microscopic circuit board fractures or costly component dislodgement.

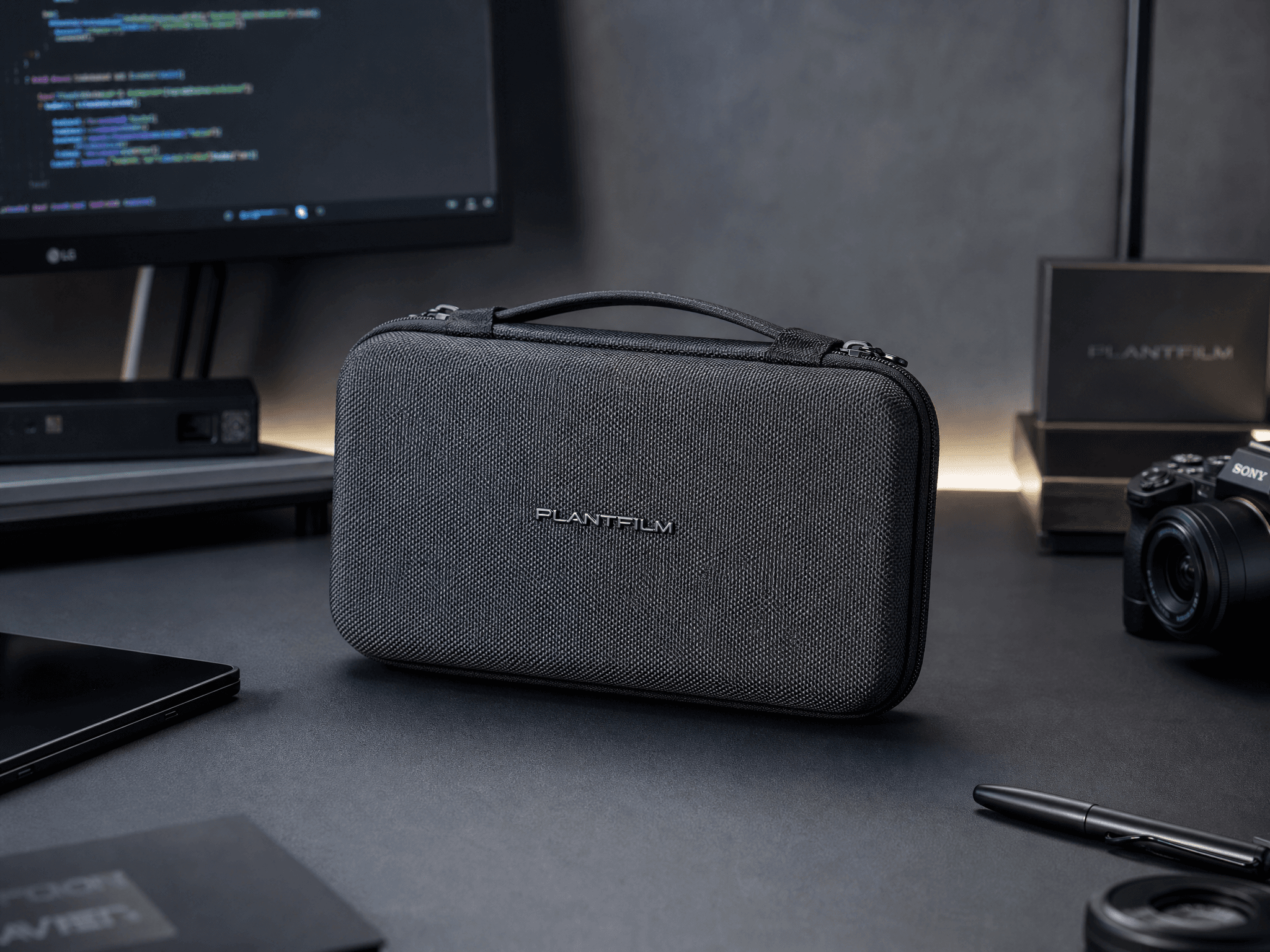

The industry-leading standard for rugged, retail-ready protection is the custom EVA skeleton case (featuring an internal core structure). By utilizing a thermoformed, rigid EVA internal core wrapped in durable exterior textiles and plush linings, this packaging system acts as a high-performance exoskeleton for fragile components.
Here is an engineering breakdown of how an EVA skeleton case shields sensitive electronic components from severe drop shock.
Technical Comparison: Electronics Protection Standards
| Protective Metric | Standard Soft Bags | Traditional Injection Hard Cases | Premium EVA Skeleton Cases |
| Structural Rigidity | Low (Collapses under pressure) | High (Heavy, rigid molded plastic) | High (Rigid thermoformed internal framework) |
| Shock Dissipation | Negligible protective dampening | Poor (Transfers kinetic force directly inside) | Excellent (Microcellular structural absorption) |
| Weight Efficiency | Ultra-lightweight | Very heavy (Significantly increases shipping costs) | Lightweight (Optimized strength-to-weight ratio) |
| Spatial Tailoring | Generic, loose silhouette | Bulky, industrial box shape | Precision Contoured (Complex 3D mold customizability) |
1. The Hidden Vulnerabilities of Sensitive Electronics
An electronic device does not require a cracked outer housing to be completely rendered useless. Sudden impact and rapid deceleration introduce severe unseen structural hazards to internal hardware:
-
Micro-Crack Susceptibility: Sudden drops bend multi-layer PCBs (Printed Circuit Boards) for a fraction of a millisecond. This tiny flex creates microscopic fractures across trace lines or solder joints beneath microchips.
-
Component Dislodgement: Under high G-force deceleration, surface-mount technology (SMT) elements, heavy capacitors, or camera modules can break free from the motherboard entirely.
-
Internal Element Failure: Sensitive sensors, laser lenses, or optical alignments within diagnostic and surveying equipment easily fall out of calibration when subjected to raw, unbuffered shock.

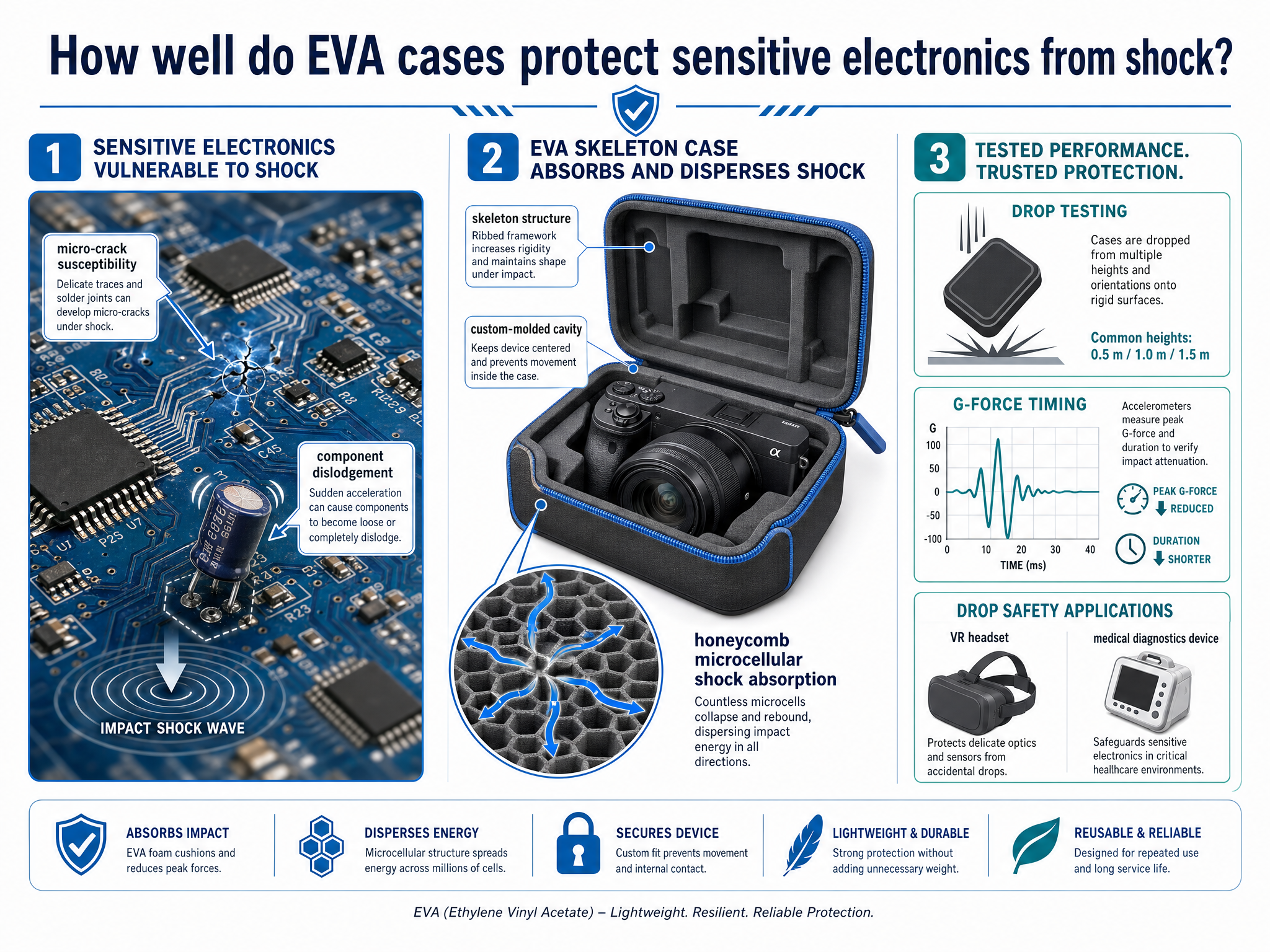

2. The Science of EVA Protection: The Internal Skeleton Advantage
The elite performance of an EVA core case relies entirely on its thermoformed EVA skeleton core. Ethylene-Vinyl Acetate is a copolymeric, closed-cell foam packed with millions of tiny microscopic air bubbles.
Microcellular Shock-Absorption Mechanics
When an EVA skeleton case impacts a hard surface, it acts as a mechanical dampener. Unlike rigid injection-molded plastics that transfer kinetic energy straight to the interior, the microcellular matrix of the EVA core compresses selectively. This compression absorbs, spreads, and dissipates the raw kinetic energy across the entire surface area of the framework, lowering the peak G-force experienced by the device inside.
Permanent Shape Memory & Roll-Cage Deflection
Because the EVA internal core is molded under extreme heat and pressure, it possesses exceptional shape memory and structural integrity. Even when subjected to heavy crushing loads in a cargo hold or packed travel gear, the rigid internal skeleton maintains its shape, acting like a vehicle roll-cage to prevent any physical compression of your hardware.
The 3-Layer Protective Synergy
An EVA core enclosure works as a unified protective ecosystem:
-
Exterior Layer (Oxford Nylon/PU Leather): Repels water, resists abrasions, and delivers a sleek, high-end retail look.
-
Middle Layer (Thermoformed EVA Skeleton Core): Handles the heavy lifting—absorbing shock, resisting compression, and maintaining structural rigidity.
-
Interior Layer (Velvet or Microfiber Lining): Securely cradles the device and prevents cosmetic scratches on screens, sensors, or lenses.
3. Real-World B2B Applications
Custom EVA skeleton cases are the trusted standard across fast-growing industries requiring maximum drop safety paired with a professional, brand-elevating presentation:
-
Consumer Electronics & VR/AR Gear: Provides precision-contoured crush protection for sensitive internal tracking cameras, optical lenses, and fragile mechanical headbands during travel.
-
Medical & Healthcare Devices: Ensures field diagnostic kits, mobile blood analyzers, and ultrasound meters maintain their precise calibrations and internal component seating even if a technician drops the unit on concrete.
Frequently Asked Questions (FAQ)
Q1: What thickness of the EVA skeleton core is recommended for high-purity electronics?
For standard electronic protection, a thickness of 5mm to 6mm provides an optimal balance between impact absorption and case slimness. For heavy industrial equipment or military-grade electronics subjected to extreme field environments, we recommend upgrading to a 7mm to 8mm high-density EVA core framework.
Q2: Can EVA skeleton cases pass standard military drop testing (MIL-STD-810G)?
Yes. When engineered alongside customized internal foam inserts (such as CNC-cut or die-cut low-density EVA/PE foam slots), a custom EVA skeleton case easily passes the 4-foot (1.2 meters) drop test criteria specified by military standards, preserving 100% of the electronic device's functionality.
Q3: Does the internal EVA skeleton lose its shock-absorbing resilience over time?
No. Unlike standard cheap packaging foam which degrades or develops a permanent crush deformity after a single impact, high-quality thermoformed EVA has excellent elasticity and permanent shape memory. It retains its structural rigidity and energy dissipation capabilities even after hundreds of impacts and years of heavy field usage.
Q4: How does a custom skeleton case compare to using standard soft bags with internal bubble wrap?
Bubble wrap and soft bags provide surface scratch protection but zero structural resistance. If a heavy object steps on or falls over a soft bag, your electronics will crush instantly. The EVA skeleton case provides an unyielding internal structural wall that actively deflects heavy crush weight away from your hardware.
Conclusion
Standard fabric pouches lack the rigid defense fragile components need, while industrial hard cases sacrifice portability and brand aesthetic. The EVA internal skeleton case offers the ultimate engineering compromise: precise mold customizability, permanent shape memory, and elite microcellular shock absorption wrapped in a premium textile finish.
Looking to secure your next hardware launch? Contact our technical packaging specialists today for a professional DFM (Design for Manufacturing) review and a custom tooling quote!
