Custom EVA Camera Case Manufacturer

Pengtour Custom EVA Headphone Cases — OEM Factory for TWS, Over-Ear & Audio Storage

Every earphone arrives exactly as it left your factory. Pengtour engineers custom EVA cases with CNC die-cut interiors matched to your product dimensions — charging case, ear tip organizer, cable slot, documentation pocket. Shell tested to MIL-STD-810G. Zipper options to IP67.

100 pcs MOQ
MIL-STD-810G Tested
TWS / IEM / Over-Ear
Years Team Experience
Get a DFM Review

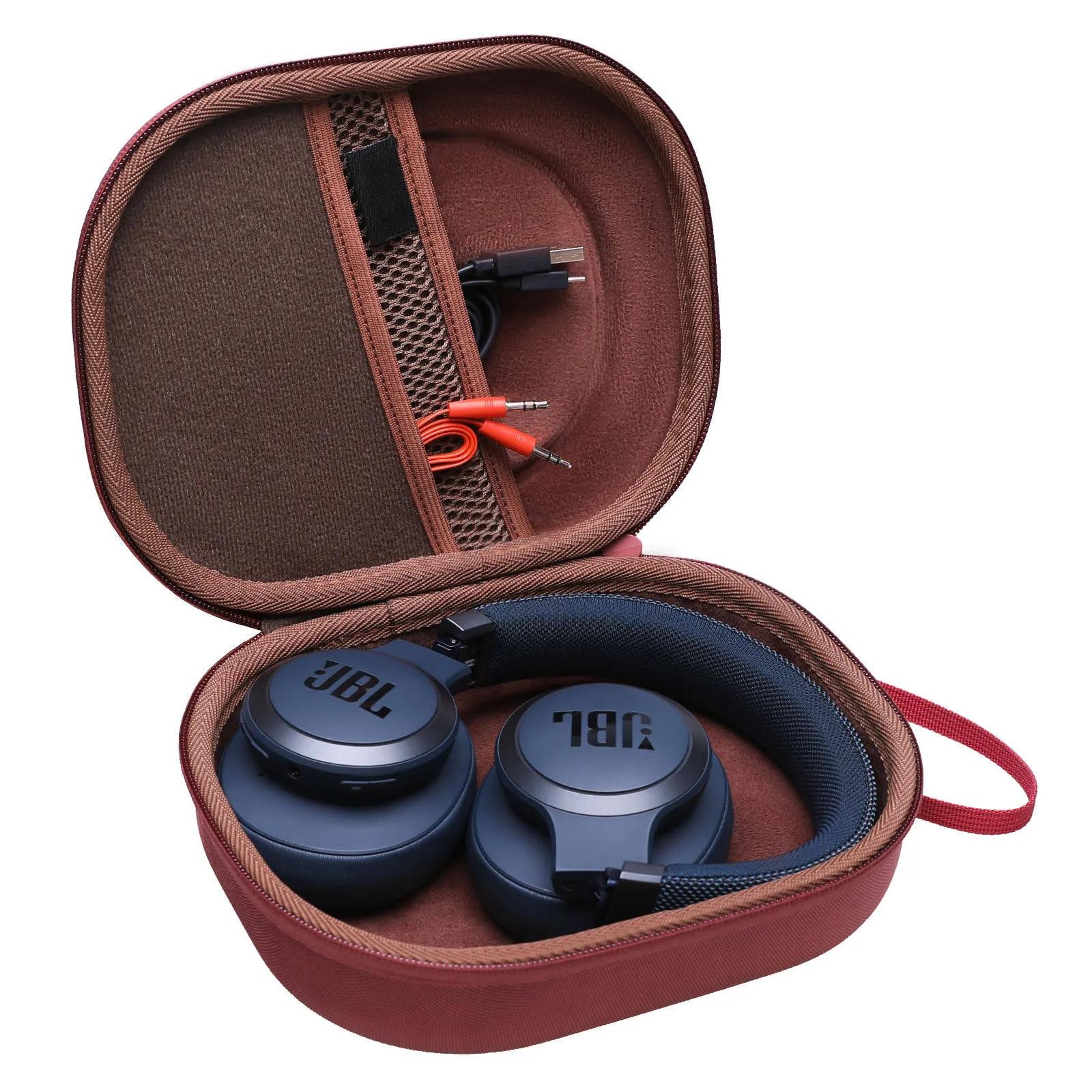

Pengtour Custom EVA Earphone Cases — Precision-Fit Protection for Audio Brands.
Min. Order Qty100 pcs MOQ✓No tooling fee
13+Years Team Experience
10M+Products Delivered
70+Fabric Color Options
50+Countries Served

Why EVA Outperforms Hard Plastic for Custom Headphone & Earphone Cases

ProtectionNeoprene PouchPlastic ClamshellPengtour EVA Case
Device fit precisionGeneric paddingRigid but not device-specificCNC die-cut ±0.3mm to your device
Shock absorptionMinimalHard shell transfers impactEVA absorbs and distributes impact
TWS charging case slotNoneGeneric cavityZero-clearance microfiber-lined slot
Brand surface areaSmall patchSticker onlyDeboss/emboss full shell surface
Weight vs. protectionLight but poor protectionHeavy50–70% lighter than ABS equivalent

Pengtour Audio Storage Solutions — One Factory, Every Audio Form Factor

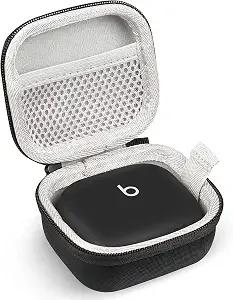

TWS Earphone Case

TWS Earphone Case

Zero-clearance charging case bay with microfiber-lined slot. Ear tip organizer tray (S/M/L sets). Cable coil slot. Documentation card sleeve. Optional: USB cable port through side wall.

  • Protection Challenge: TWS charging cases suffer surface scratches from repeated insertion and removal into generic cases. Loose earbuds rattle inside oversized cavities, stressing the hinge mechanism and scuffing the glossy finish.
  • Pengtour Engineering: Zero-clearance microfiber-lined charging case slot eliminates friction wear. Precision die-cut ear tip organizer tray holds S/M/L sets individually — no loose items, no rattle.

Compatible Products

AirPods / Sony WF / Samsung Galaxy Buds / custom TWS

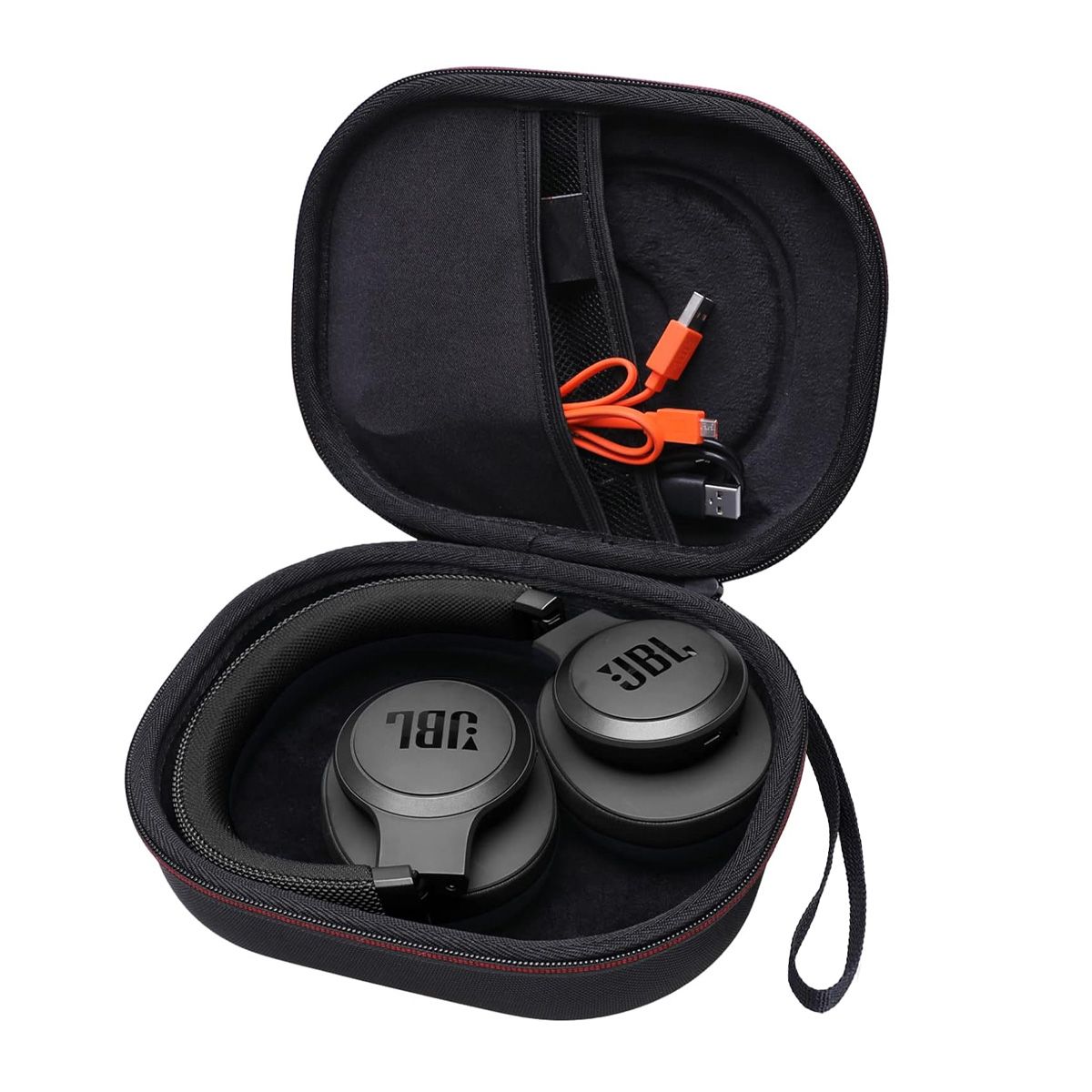

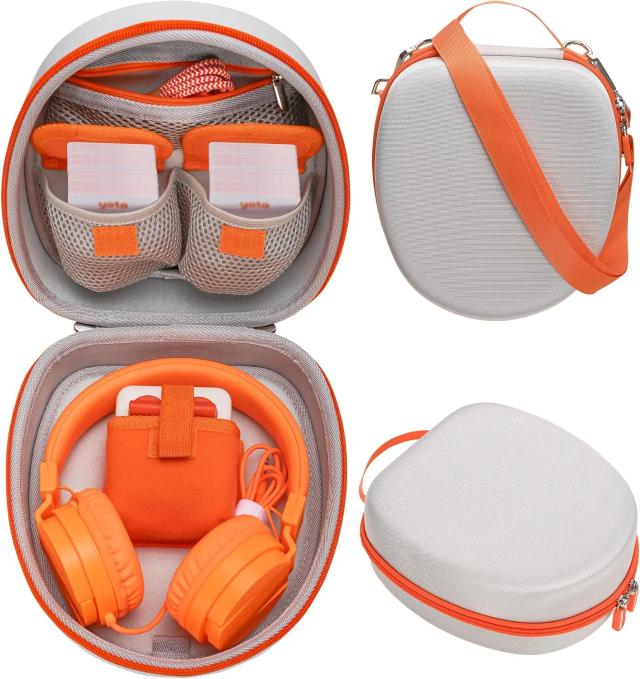

Over-Ear Headphone Case

Over-Ear Headphone Case

Headband channel engineering (straight or curved arc, per actual fold radius). Earcup isolation: 20mm EVA pad per cup. Internal pocket: cable + 3.5mm adapter. Carrying handle or shoulder strap attachment.

  • Protection Challenge: Over-ear headphones face two failure modes in shipping: stacking pressure permanently bends the headband arc, and prolonged compression degrades ear cushion memory foam — reducing noise isolation and comfort that customers immediately notice on unboxing.
  • Pengtour Engineering: Headband channel engineered to exact fold radius (straight or curved arc per model). 20mm EVA isolation pad per earcup prevents cushion compression. Internal cable + adapter pocket keeps accessories separated from headphone surfaces.

Compatible Products

Sony WH-1000XM5 / Bose QC45 / custom over-ear

IEM / Monitor Case

IEM / Monitor Case

Custom-cast silicone or die-cut EVA ear shell tray. MMCX / 2-pin cable coil slot. Tool pouch insert for ear tip tools. Brushed aluminum nameplate option.

  • Protection Challenge: Metal-shell IEMs stored together risk metal-on-metal contact scratches between earpieces. Detachable MMCX and 2-pin cables tangle and pull on connector pins during removal, causing intermittent audio failure.
  • Pengtour Engineering: Custom-cast silicone or die-cut EVA ear shell tray with individual earpiece slots. Dedicated MMCX / 2-pin cable coil slot with ≥ 25mm bend radius prevents connector stress. Optional brushed aluminum nameplate for premium retail presentation.

Compatible Products

Custom IEM / CIEM / studio monitor earphones

Full Audio Kit Case

Full Audio Kit Case

Multi-tier EVA interior: headphone bay (top tier) + DAC/AMP bay with cable management (bottom tier). Divider system: fixed or configurable. Retail display window on lid optional.

  • Protection Challenge: Multi-SKU audio kits — headphone, DAC/AMP unit, cables, adapters — have mismatched weights and surface hardness. Hard DAC/AMP corners abrade adjacent headphone ear cushions, and cable connectors scratch DAC input ports during transport.
  • Pengtour Engineering: Multi-tier EVA interior: dedicated headphone bay (top tier) fully isolated from DAC/AMP bay with cable management (bottom tier). Fixed or configurable divider system prevents tier-to-tier contact. Optional retail display window on lid for shelf presentation.

Compatible Products

Headphone + DAC/AMP + cable multi-SKU kit

Need a Different Camera Case Structure?

Share your camera model, lens configuration, accessories and estimated quantity. We will review the complete setup and recommend a practical direction for the shell, interior layout and sample development.

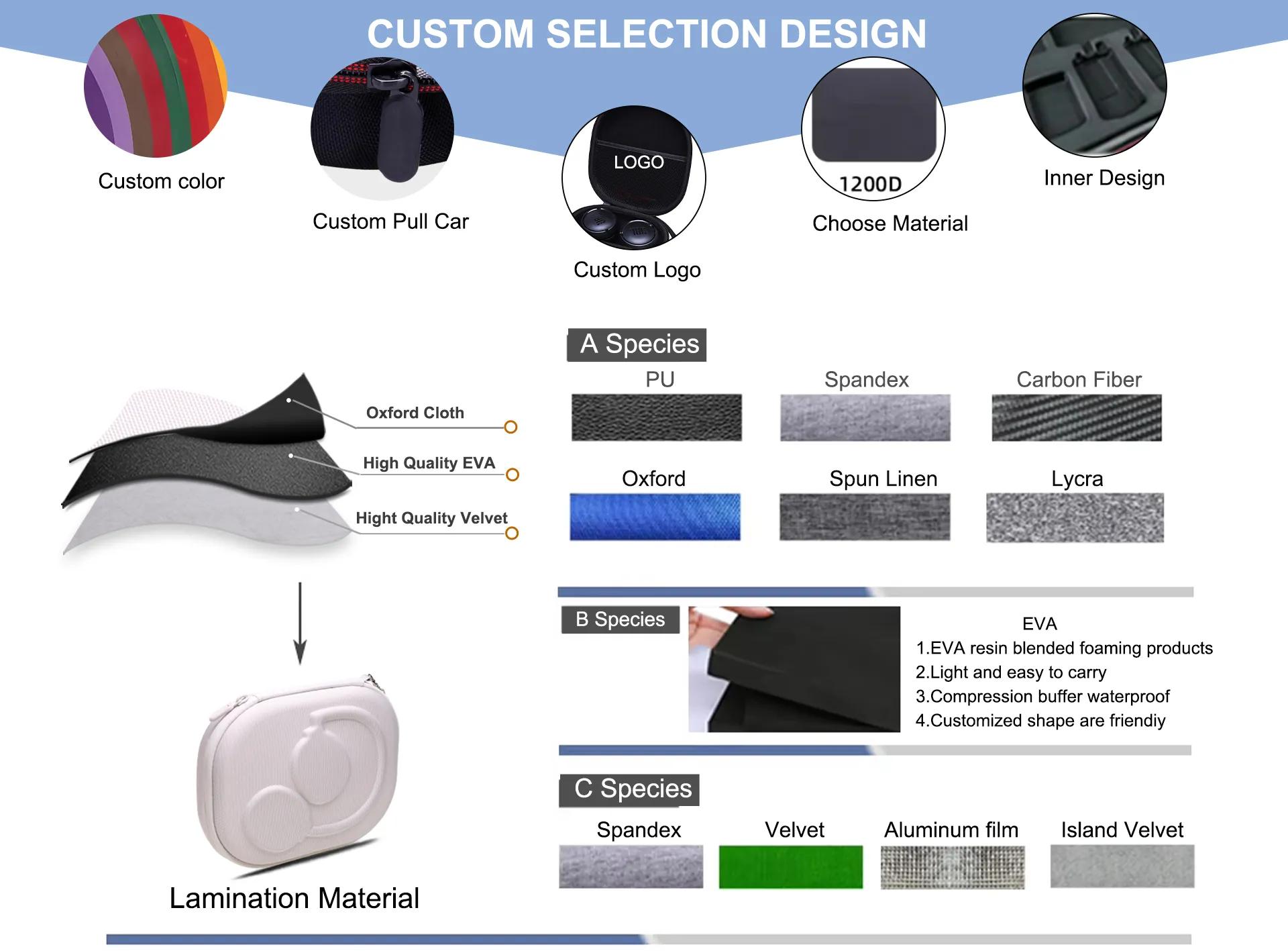

Four Dimensions of Customization — Custom Logo EVA Headphone Case, Your Way

Material & Exterior

  • EVA hardness 35–65 Shore C; finish: matte/gloss/fabric-wrap; color: custom Pantone; handle: rubber grip / metal bale / strap loop

Interior Layout

  • CNC die-cut per CAD; foam density 45–80 kg/m³; microfiber lining; elastic loops; zipper pocket; earphone-specific: headband channel, charging case slot, ear tip tray

Branding

  • Debossed/embossed shell logo; laser-engraved zipper pull; woven label; screen print; full-color insert card

Packaging

  • Retail carton / magnetic gift box / FBA-compliant master carton; barcode; hang tag

Full Configuration at Every Layer — EVA Headphone Case Material Options

OEM and ODM EVA camera case customization service
ComponentSpecificationNotes
EVA Shell35–65 Shore C; 15–22mm wall; density 38–55 kg/m³Consumer audio: softer; studio/field: harder
Interior Foam45–80 kg/m³ closed-cell; CNC die-cut ±0.3mm; microfiber liningReplacement insert available
Zipper#5–#8 coil or vislon; IP67 option (IEC 60529); 50-cycle testedColor-matched available
HardwareZinc-alloy or ABS latches; nickel / matte black / gold finishLoad test ≥ 30 kg
Handle/StrapTop rubber grip; wrist strap loop; optional carabiner clip—

From Your Audio Product to Our Case — Transparent OEM Headphone Case Development

STEP01

Design

Engineer maps headphone/earphone dimensions to cavity layout. Headband channel arc, charging case slot, ear tip tray, cable management modeled.

Timeline:
1-3 working days
Your Input Required:
Product CAD/dimensions + branding artwork
STEP02

Sampling

Physical prototype: EVA cold-pressed, interior die-cut, logo applied. Fit check with actual device.

Timeline:
7 days
Your Input Required:
Review & approve sample
STEP03

Sign-Off

Pre-production sample shipped. Final cavity, material, branding locked.

Timeline:
3-5 days (shipping dependent)
Your Input Required:
Sign approval form
STEP04

Mass Production

IQC → IPQC → FQC (AQL 2.5) → Performance → OQC.

Timeline:
30–45 days after sample approval
Your Input Required:
None
STEP05

Pack & Ship

Per spec. Pre-shipment inspection report. FOB/CIF/EXW.

Timeline:
As per shipping terms
Your Input Required:
Confirm packaging spec

Mold Fee Policy

  • Stock mold: free (existing cavity shapes)
  • Semi-custom mold (existing shell + adjusted interior): 400
  • Full custom mold (new EVA shell shape + new interior): 1,500
  • Mold fee 100% refundable against first bulk order ≥ 2,000 pcs

Pengtour Headphone Case Quality Control — Five In-House Gates, Third-Party Testing on Request

GateWhat We CheckStandard / Equipment
IQCEVA hardness & density; zipper pull-force; hardware tensileShore C durometer; pull gauge; density tester
IPQCWall thickness; cavity accuracy ±0.3mm; zipper seal; hinge alignmentDigital caliper; CMM gauge; water probe
FQCDevice fit check; headband channel clearance ≥ 2mm; zipper 50-cycle; logo alignment; cosmeticAQL 2.5 per ISO 2859-1:1999 (iso.org/standard/1141.html)
Performance1.5m drop 6-face (MIL-STD-810G Method 516.6); IP67 splash (IEC 60529); TWS charging case slot insertion 500-cycle; headband 50 kg top-loadDrop tester; IPX chamber; torque meter
OQCCosmetic; label completeness; carton compression per ISTA 1A (ista.org)Visual jig; carton tester

Headphone Category-Specific QC

Test ItemMethodPass Criterion
TWS charging case anti-scratch500 insertion/removal cycles with actual charging caseNo visible scratch on microfiber lining; charging case lid opens/closes freely
Headband channel shape retention50 kg vertical load applied to top panel for 24 hrsChannel width deviation <= 1mm from nominal
Earcup pad isolationLateral compression 5 kg per earcupNo contact between earcup surfaces; padding intact
Zipper corrosion (optional)48 hr salt spray per ASTM B117-19 (store.astm.org/b0117-19.html)No visible tarnish on zipper coil or pull

Frequently Asked Questions — Custom EVA Headphone & Earphone Cases

Common questions about ordering, pricing, production, and shipping

The minimum order quantity for custom EVA headphone cases is 100 pcs per design.
Yes. Provide the charging case dimensions (L×W×H) and lid opening angle — we engineer a zero-clearance slot. Compatibility confirmed before mass production with a physical fit check.
Sample production: 7 days. Sample cost: RMB 500–1,200 (approx. USD 70–165), fully refunded on first bulk order.
Yes. For professional and studio monitor cases we offer a replaceable foam tile system — the customer reorders foam inserts without needing a full case replacement.
REACH/RoHS material compliance is standard. IP67 waterproof rating (IEC 60529) testing is available via SGS or Intertek. CE marking documentation support available for EU market products.
FOB (Dongguan/Guangzhou/Shenzhen), CIF, EXW. Incoterms 2020.
