Custom EVA Camera Case Manufacturer

Custom EVA Camera Cases Engineered Around Your Camera & Accessories

DFM & 3D Design Support
Custom-Fit Shells & Interiors
Prototype-to-Production Support
NDA & IP Protection
SGS
ISO9001
Get a DFM Review

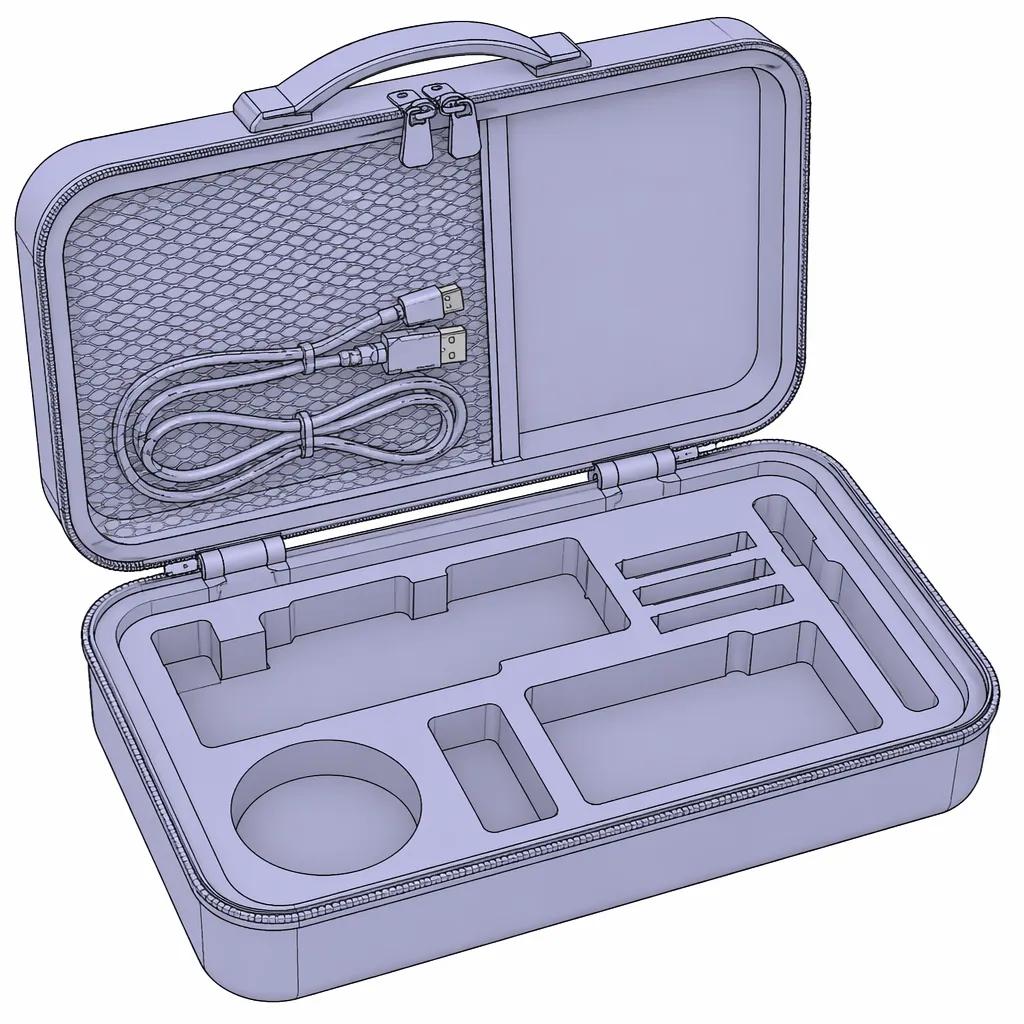

Custom EVA camera case
Min. Order Qty100 pcs✓No tooling fee
Lead Time30–45 daysSample included
13+Years Experience
10M+Products Delivered
70+Fabric Color Options
50+Countries Served

Why EVA Outperforms Hard Plastic and Fabric for Custom Camera Cases

AdvantageWhat It Means for Camera Gearvs. Hard Plastic (PP/ABS)vs. Soft Fabric Pouch
Impact AbsorptionClosed-cell foam structure decelerates shock before it reaches the lens or body. When tested against MIL-STD-810G drop protocols (1.5m concrete, 6 faces + 4 corners), the EVA cavity keeps transmitted shock well within safe limits for precision opticsHard shell cracks or transfers 100% of impact directly to gear.Zero structural protection — fabric collapses on impact.
Custom MoldabilityEVA can be hot-pressed into any 3D shell shape and die-cut to ±0.5mm cavity precision. Lens barrel channels, anti-rotation ribs, accessory trays — all molded in, not glued in.Requires injection mold tooling; cavity inserts are afterthoughts, not integrated.No molding capability at all.
Lightweight StrengthEVA density 60–85 kg/m³ delivers compression resistance ≥ 90 kg/cm². A full-size DSLR EVA case weighs ~400–600g — approximately 40–50% lighter than equivalent-sized traditional hard cases (e.g., injection-molded polypropylene).Heavier for equivalent structural strength; hard cases add 200–400g dead weight.Lightest option, but zero crush protection.
Water ResistanceClosed-cell structure is inherently water-repellent. With a waterproof zipper, the case reaches IPX4 or higher. No separate rain cover needed.Waterproof only with rubber gasket seals — adds weight and cost.Absorbs water; gear gets wet in rain.
Surface VersatilityEVA shell accepts PU leather, ballistic nylon, 600D polyester, carbon-fiber texture, or matte finish — all laminated in the same molding cycle. One-step, no secondary gluing.Surface finish limited to molded texture or post-paint. Fabric wraps require manual gluing.Fabric-only; no structural shell option.
Temperature StabilityOperating range -20°C to +60°C. EVA doesn't become brittle in cold storage or soft in a hot delivery van. Lens lubricants and sensor calibrations stay stable.PP becomes brittle below 0°C; ABS softens above 70°C.No thermal protection for gear.
Cost PerformanceDie-cut foam + EVA shell production is scalable from 100 to 50,000 pcs without retooling. Per-unit cost drops with volume while protection stays consistent.Injection molds cost 10,000 and lock you into one shape.Cheapest per unit, but highest return/repair cost from damaged gear.

Custom EVA Camera Cases by Application — Instant, Compact, Mirrorless & Kit

Instant Camera Cases

Instant Camera Cases

Compact molded EVA cases developed around instant cameras, film packs, batteries and carrying accessories.

  • Protection Challenge: Instant camera plastic shells scratch easily in transit, and film packs can shift inside generic cases — blocking the ejection slot and causing misfeed jams.
  • Pengtour Engineering: Full plush fleece lining with zero-gap fit eliminates shell-to-case contact. Film pack slot is precisely cut to keep packs stable with the photo outlet unobstructed.

Compatible Models

Instant Camera EVA Case

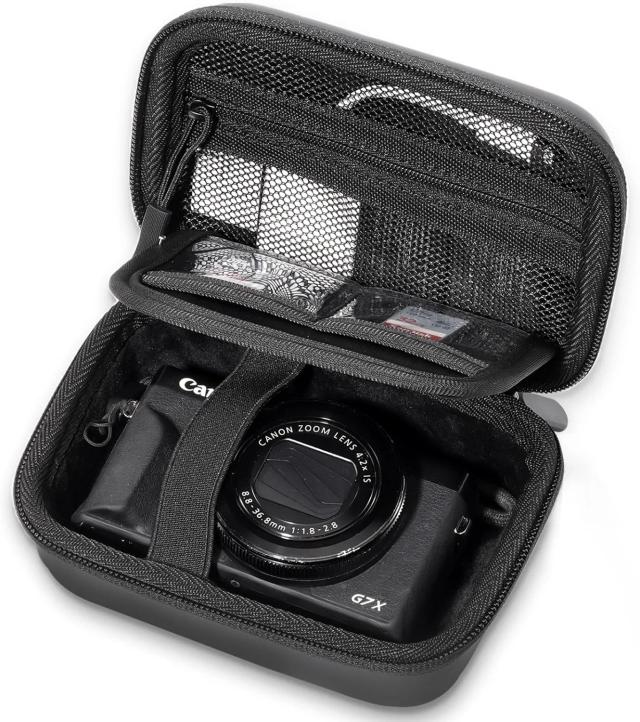

Compact & Vlogging Camera Cases

Compact & Vlogging Camera Cases

Lightweight protective cases designed around compact cameras, vlogging equipment, batteries, cables and creator accessories.

  • Protection Challenge: Vlog cameras are handled frequently on-location — repeated one-handed opening stresses the zipper and scratches the flip screen when the lid snaps back unsupported.
  • Pengtour Engineering: Top quick-access opening eliminates full unzip. Flip-screen clearance groove prevents lid contact with the display at any angle.

Compatible Models

Compact Vlogging Camera EVA Case

Mirrorless Camera Cases

Mirrorless Camera Cases

Custom EVA cases for mirrorless camera bodies, fitted lenses and essential accessories.

  • Protection Challenge: A mounted lens creates a bending moment at the lens mount flange during impact — the most common cause of mount damage that is invisible until autofocus fails.
  • Pengtour Engineering: Independent lens support groove distributes load along the barrel, not the mount. Partitioned body fixation with 4.0mm EVA wall prevents chassis flex under stacking pressure.

Compatible Models

Mirrorless Camera Lens & EVA Case

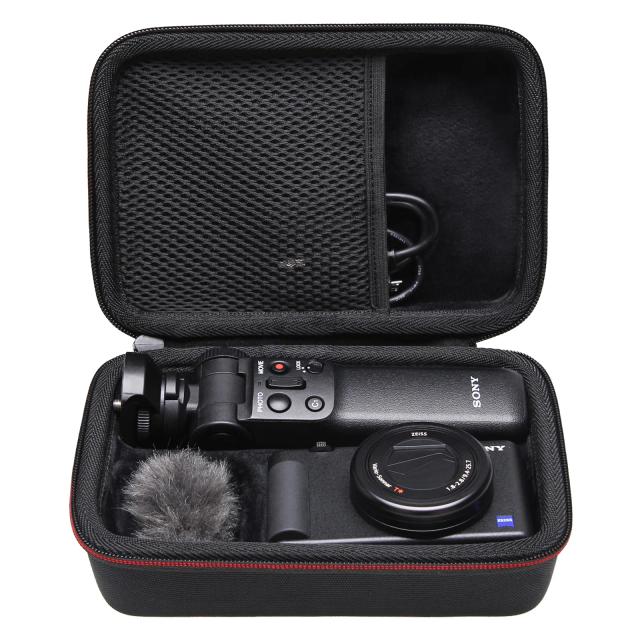

Camera & Accessory Kit Cases

Camera & Accessory Kit Cases

Organized EVA cases for cameras, microphones, lighting equipment, batteries, chargers and cables.

  • Protection Challenge: Multi-item kits — microphones, lights, cables, batteries — collide in transit. Metal connector ends scratch adjacent plastic housings, and tangled cables stress solder joints.
  • Pengtour Engineering: Configurable partitioned dividers with individual item slots. Optional anti-static lining for sensor-adjacent accessories. Separate lens and body compartments prevent metal-on-glass contact.

Compatible Models

Custom Camera & Accessory Kit Case

Need a Different Camera Case Structure?

Share your camera model, lens configuration, accessories and estimated quantity. We will review the complete setup and recommend a practical direction for the shell, interior layout and sample development.

Four Dimensions of Customization — Design Your Camera Case, Your Way

Material & Exterior

  • Outer shell: EVA (Ethylene-Vinyl Acetate) in hardness from Shore C 45-70
  • Surface finish: PU leather, ballistic nylon, 600D polyester, carbon-fiber texture, or matte EVA
  • Water-resistant or fully waterproof zipper (YKK equivalent)
  • Reinforced edge binding; double-stitched stress points
  • Pantone color matching; custom dye lot minimum 500 pcs

Interior Layout - Precision Die-Cut

  • Die-cut EVA foam / PU memory foam / cross-linked PE foam — cavity precision ±0.5mm
  • Multi-tier foam: body cavity + lens channels + accessory trays + lid foam
  • Configurable: removable dividers, elastic straps, mesh pockets, SD card slots
  • CAD-driven: send your product 3D file (STEP/IGES/STL) or physical sample — we reverse-engineer the layout

Branding & Graphics

  • Logo: silk-screen, heat transfer, embossing/debossing, metal badge, rubber patch, laser engraving
  • Full-wrap sublimation printing for all-over brand graphics
  • QR code / serial number printing for anti-counterfeit verification
  • MOQ for custom branding: as low as 100 pcs

Packaging & Retail Readiness

  • Individual polybag with hang-tag for pegboard retail display
  • Custom color box with die-cut foam insert - shelf-ready
  • FNSKU labeling, Amazon FBA suffocation-warning compliance
  • Bundling: camera case + accessories pre-packed per your kit specification

Configure the Case Around Your Camera — Material & Structure Options

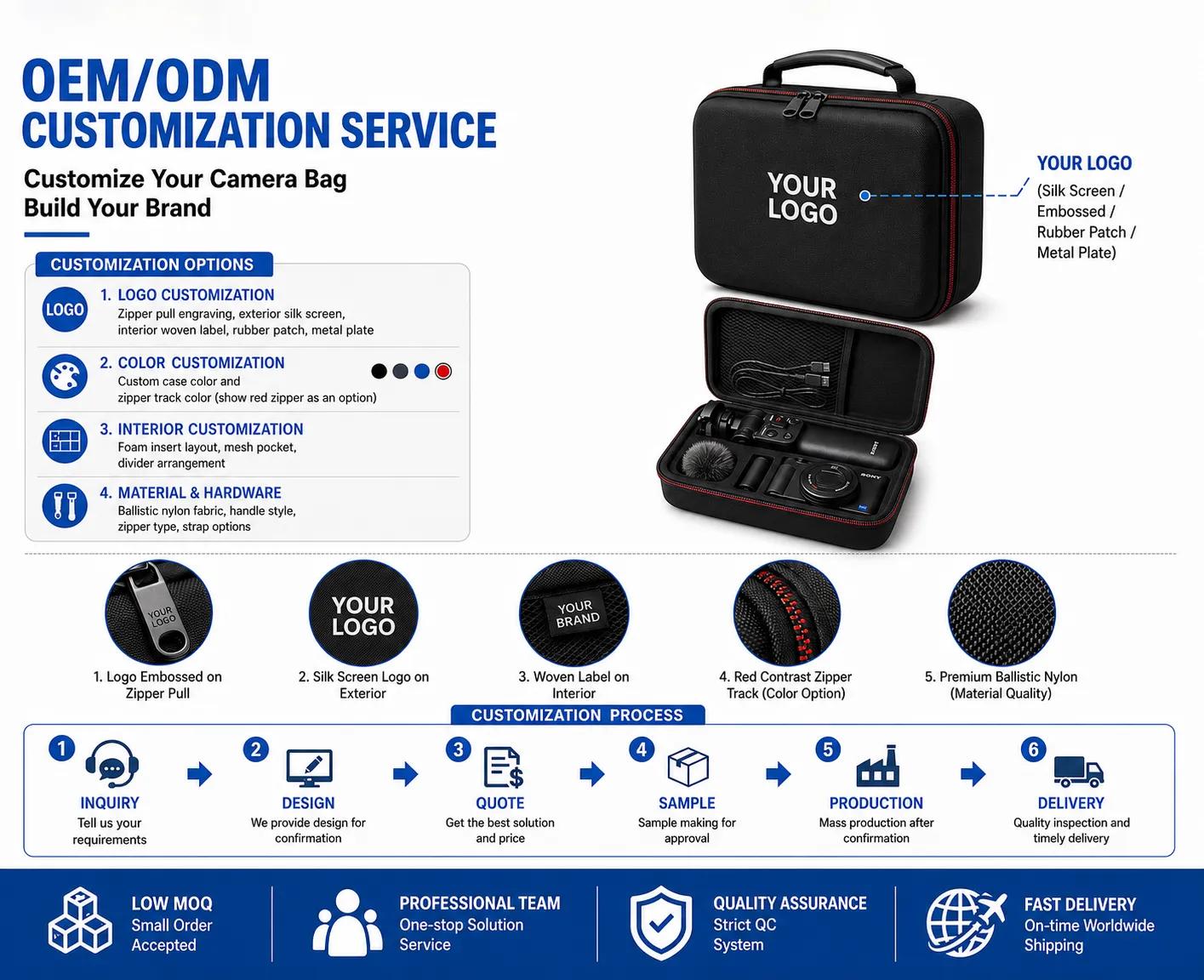

OEM and ODM EVA camera case customization service
Configuration LayerStandard DirectionCustomizable Options
Outer ShellDurable textile exteriorFabric category, coating, texture, color, pattern
Structural ShellThermoformed EVAconstructionThickness, firmness, depth, contour, reinforcement
CushioningProtective foam layerFoam type, thickness, zoned placement, removable insert
Interior LiningSoft protective liningMaterial, color, printed pattern, easy-clean finish
Interior LayoutAdjustable storage systemDividers, molded trays, foam cutouts, straps, pockets
ClosureZippered openingZipper construction, puller, opening direction
Carrying SystemTop or side handleHandle type, shoulder strap, attachment points
BrandingProject-specific logo applicationPrinting, embroidery, patch, embossing, metal badge
PackagingProtective export packingPolybag, insert card, retail box, barcode, labeling
Lens scratch protectionShore A 25 soft PU memory foam inner liningModule 4 Inner Lining Layer
Body mount bending moment resistanceIndependent lens support groove + partitioned body fixationModule 4 Structural Layer
Moisture protection for storageOptional silica gel desiccant slot + EVA closed‑cell moisture‑proof constructionModule 4 Shell Layer

From Your Camera to Our Case - Transparent at Every Step

STEP01

Design

Our engineer translates your camera/lens dimensions (CAD/3D or physical sample) into a 2D/3D case layout. Multi-tier foam architecture, material selection, and branding position are proposed. Camera-specific protections (lens mount isolation, anti-rotation ribs) designed at this stage.

Timeline:
1-3 working days
Your Input Required:
Provide product CAD / dimensions + branding artwork
STEP02

Sampling

A physical prototype is produced: EVA shell molded, interior die-cut, logo applied. Fit check: camera body insertion/extraction, lens barrel clearance, accessory tray alignment. Drop-test preview at 1.5m.

Timeline:
7 days
Your Input Required:
Review & approve sample photos; request adjustments
STEP03

Sign-Off

You receive the pre-production sample. Test it with your actual gear. Final material, color, and branding are locked. This sample becomes the mass-production golden reference.

Timeline:
3-5 days (shipping dependent)
Your Input Required:
Sign sample approval form; confirm order quantity
STEP04

Mass Production

Bulk manufacturing: IQC material checks → IPQC inline monitoring → FQC finished-product inspection (AQL 2.5) → Performance testing (see Module 7) → OQC pre-shipment audit.

Timeline:
30–45 days after sample approval
Your Input Required:
None - we handle everything
STEP05

Delivery

Packed per your spec. Pre-shipment inspection report shared before container release. FOB / CIF / EXW shipping.

Timeline:
As per shipping terms
Your Input Required:
Confirm shipping documents

Mold Fee Policy

  • Stock mold: free (existing cavity shapes)
  • Semi-custom mold (existing shell + adjusted interior): 400
  • Full custom mold (new EVA shell shape + new interior): 1,500
  • Mold fee 100% refundable against first bulk order ≥ 2,000 pcs

Pengtour Quality Control - Five In-House Gates, Third-Party Testing on Request

GateWhat We CheckStandard / Equipment
IQCEVA sheet density & color, zipper smoothness & pull-force, fabric lamination peel strength, foam cell structureFabric category, coating, texture, color, pattern
IPQCMold temperature (±3°C tolerance), hot-press pressure & dwell time, cavity alignment against CAD overlay, stitch tension & SPIDigital thermometer, pressure transducer, optical comparator, tension meter
FQCProduct dimensions (length/width/height ±1mm), logo position (±0.5mm), zipper full-cycle function, interior fit (insert/extract force), surface defectsAQL 2.5 Level II sampling, vernier caliper, go/no-go gauge, D65 light booth
PerformanceDrop test (1.2m/1.5m/1.8m), compression test (90 kg/cm²), zipper cycle (5,000 cycles), water splash (IPX4/IPX6)Drop tester, universal testing machine, zipper fatigue tester, IPX spray chamber
OQCPackaging integrity, label accuracy, quantity verification, carton drop test (ISTA 1A)Carton drop tester, barcode scanner, weight scale

Camera-Specific QC Standards

StandardWhat We Design ForHow We Verify
Lens Mount IsolationIndependent body cavity + lens barrel channel — zero load transfer through lens mount flange during impactSample-stage fit check with reference camera body; cavity clearance verified against CAD overlay at IPQC
Lens Cavity RetentionContoured anti-rotation ribs molded to lens barrel diameter; foam grips full circumference without pinchingInsert/extract force test at FQC; visual inspection for rotation marks after sample transit test
Stacking Crush ResistanceEVA wall thickness ≥ 4.5mm, compression strength ≥ 90 kg/cm² — withstands 5-layer warehouse pallet stackingCompression test on universal testing machine at Performance gate; shell deformation ≤ 3mm
Water Ingress PreventionWaterproof zipper option + closed-cell PE foam (non-absorbent) + sealed seam constructionIPX4 spray test at Performance gate for waterproof-rated cases
Zipper LongevityYKK zipper rated for 5,000+ open/close cycles; pull-force tested at FQCZipper cycle test at Performance gate; pull-force increase ≤ 15% vs. baseline
In-Case StabilityDie-cut cavity precision ±0.5mm; multi-tier foam architecture prevents item-to-item contact Visual inspection at FQC: all cavities fit reference product without gaps or binding

Third-Party Testing — Available on Request

ServiceAgency OptionsTypical Scope
Pre-Shipment InspectionSGS, Bureau Veritas, TÜV RheinlandAQL sampling, dimensional check, function test, packaging audit — per your specified standard
Lab Performance TestingSGS, Intertek, ULMIL-STD-810G drop test, ISTA transit test, IP waterproof rating certification, REACH/RoHS material compliance
Factory AuditSGS, Bureau VeritasSocial compliance (SMETA), quality management system (ISO 9001), production capacity verification
Note Testing scope, methods, and acceptance criteria are confirmed according to project requirements.

QC Documentation Per Shipment:

  • Signed in-house QC inspection report (IQC + IPQC + FQC + OQC summary)
  • Material certification (EVA sheet, zipper, fabric supplier COA)
  • Third-party test report (if commissioned)
  • Packing list with batch traceability code

Frequently Asked Questions About Custom Camera Cases

Common questions about ordering, pricing, production, and shipping

The minimum order quantity for custom Pengtour EVA camera cases is 100 pcs, including custom designs and stock molds with logo customization.
Yes — this is our core capability. Send us your camera/lens 3D file (STEP, IGES, STL) or ship us a physical sample. We reverse-engineer the interior cavity layout — die-cut foam precision ±0.5mm — at no extra charge for the design phase.
Yes. Every batch goes through our five-gate in-house QC process (see Module 7): IQC → IPQC → FQC (AQL 2.5) → performance testing (drop, crush, zipper cycle, water spray) → OQC. For independent verification, third-party inspection and lab testing (SGS, Bureau Veritas, TÜV) can be arranged at your request.
Sample production: 7 days after design confirmation. Sample cost: USD 200. Sample fees are 100% refundable against your first bulk order.
Silk-screen, heat transfer, embossing/debossing, metal badge, rubber patch, laser engraving, and full-wrap sublimation printing. MOQ for custom branding: as low as 100 pcs. We'll recommend the best process based on your logo complexity and target retail price point.
Yes. We support full Amazon FBA compliance: FNSKU labeling, suffocation-warning polybags, carton-level barcode labeling, and palletization per Amazon spec. We also offer retail shelf-ready color boxes, DTC gift packaging, and hang-tag pegboard packaging.
